미로 찾기 ai -강화학습(q-table,입실론 그리디 정책)

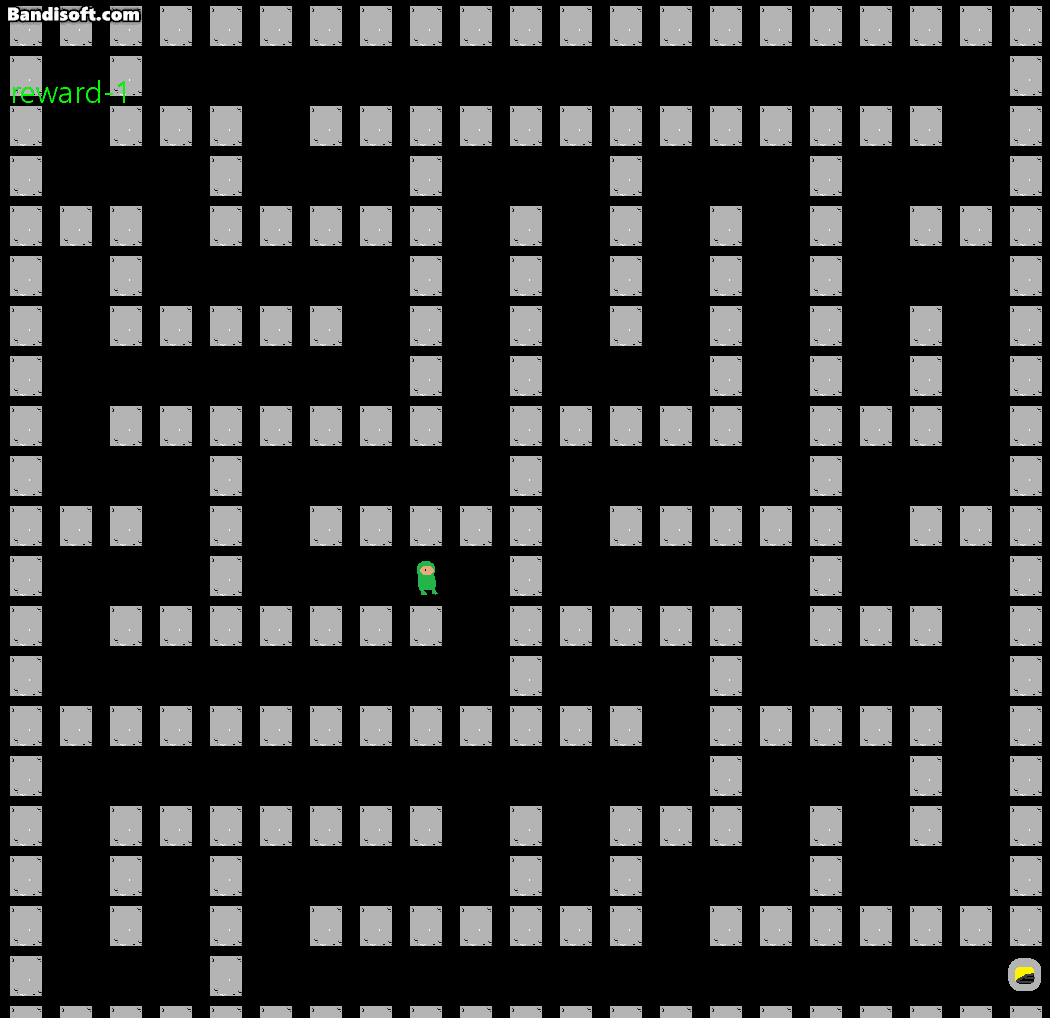

미로를 생성하고 최단거리로 탈출하는 Q-테이블을 찾는 AI를 만들었습니다. 미로 생성은 깊이 우선 탐색을 사용하였고,

탈출 과정에서는 앱실론 그리디 정책을 적용했습니다.
AI는 미로를 최단 경로로 탈출하기 위해 Q-테이블을 활용합니다. Q-테이블은 상태(State)와 행동(Action)을 기반으로

최적의 가치(Value)를 예측하는 테이블입니다. AI는 현재 상태에서 최적의 행동을 선택하고,

행동을 수행한 후에는 Q-테이블을 업데이트하여 학습합니다.

이 방법은 탐색과 이용을 균형있게 조정하여 최적의 경로를 탐색하면서도 이미 발견한 경로를 활용합니다.

아래는 소스 코드입니다.



maze_ai.py

(강화학습을 진행하여 미로를탈출하는 모듈)

import pygame
import numpy as np
import env
import argparse
import calculate

class Maze_ai():
    def __init__(self,maze_size,view_episode,visualize,episodes):
        self.maze = np.array(env.make_maze(maze_size))

        self.wall_img=pygame.image.load("images/wall.png")
        self.player_img=pygame.image.load("images/player.png")
        self.exit_img=pygame.image.load("images/exit.png")
        self.wall_img=pygame.transform.scale(self.wall_img,(50,50))
        self.player_img=pygame.transform.scale(self.player_img,(50,50))
        self.exit_img=pygame.transform.scale(self.exit_img,(50,50))
        self.maze_height = len(self.maze)
        self.maze_width = len(self.maze[0])
        self.maze[self.maze_height - 2][self.maze_width - 1] = 2
        # 가능한 행동
        self.actions = ['up', 'down', 'left', 'right']
        # Q 테이블 초기화
        self.q_table = np.zeros((self.maze_height, self.maze_width, len(self.actions)))
        # 하이퍼파라미터 설정
        self.learning_rate = 0.1
        self.discount_factor = 0.99
        self.exploration_rate = 0.1
        self.ep_num = episodes
        #reward관련변수
        self.move=0
        self.prev_move=0
        self.failed=0
        self.serched=[]# 미로 설정
        self.visualize=visualize
        self.view_episode=view_episode
        self.maze_size=maze_size
        self.calculate_shortest_path=calculate.Calculate(self.maze)
        self.shortest_path=self.calculate_shortest_path.return_shortest_path()+1
        self.end_ep=self.start()
        print("Shortest Path:", self.shortest_path)
        print("End Episode:", self.end_ep)
    def start(self):
        # pygame 초기화
        pygame.init()
        clock = pygame.time.Clock()
        # 색상 설정
        BLACK = (0, 0, 0)
        WHITE = (255, 255, 255)
        GREEN = (0, 255, 0)
        BLUE = (0, 0, 255)
        # 창 크기 설정
        if self.visualize:
            screen_width = self.maze_width * 50
            screen_height = self.maze_height * 50
            screen = pygame.display.set_mode((screen_width, screen_height))
            pygame.display.set_caption("Maze Solver")
        # 에이전트 초기 위치
        agent_position = (0, 1)
        # 게임 루프
        running = True
        current_episode = 1
        while running:
            if self.visualize:
                if self.view_episode<=current_episode:
                    for event in pygame.event.get():
                        if event.type == pygame.QUIT:
                            running = False

                    # 미로 그리기
                    screen.fill(BLACK)
                    for row in range(self.maze_height):
                        for col in range(self.maze_width):
                            if self.maze[row][col] == 1:
                                #img사용하기
                                screen.blit(self.wall_img,(col * 50, row * 50))


                            if self.maze[row][col] == 2:
                                screen.blit(self.exit_img,(col * 50, row * 50))

                    # 에이전트 그리기
                    screen.blit(self.player_img,(agent_position[1] * 50, agent_position[0] * 50))

            # 탐험 및 활용 결정
            self.exploration_rate_threshold = np.random.uniform(0, 1)
            if self.exploration_rate_threshold > self.exploration_rate:
                action_index = np.argmax(self.q_table[agent_position])#최적의 행동
            else:
                action_index = np.random.randint(len(self.actions))#완전랜덤

            self.move+=1
            action = self.actions[action_index]


            # 에이전트 이동
            if action == 'up':
                next_position = (agent_position[0] - 1, agent_position[1])
            elif action == 'down':
                next_position = (agent_position[0] + 1, agent_position[1])
            elif action == 'left':
                next_position = (agent_position[0], agent_position[1] - 1)
            else:
                next_position = (agent_position[0], agent_position[1] + 1)
            #이전과 같은 위치에 있을 경우
            prev_move=agent_position
            self.serched.append(prev_move)

            # 벽에 부딪혔을 경우
            if self.maze[next_position[0]][next_position[1]] == 1:
                if self.visualize:
                    if self.view_episode<=current_episode:
                        font=pygame.font.Font(None, 50)
                        text=font.render("Fail",True,WHITE)
                        screen.blit(text,(next_position[1]*50,next_position[0]*50))
                        self.failed+=1


                next_position = agent_position
                reward = -1000
            if self.maze[next_position[0]][next_position[1]] == 2:
                agent_position = next_position

            if self.move>self.shortest_path:
                reward=-100


            # 보상 계산
            if next_position == (self.maze_height - 2, self.maze_width - 1):
                reward = 100
            elif next_position in self.serched:
                if self.visualize:
                    if self.view_episode<=current_episode:
                        font=pygame.font.Font(None, 50)
                        text=font.render("Fail",True,WHITE)
                        screen.blit(text,(next_position[1]*50,next_position[0]*50))
                reward= -10000

            # Q 테이블 업데이트
            self.q_table[agent_position][action_index] += self.learning_rate * (
                reward + self.discount_factor * np.max(self.q_table[next_position]) - self.q_table[agent_position][action_index]
            )

            # 에이전트 위치 업데이트
            agent_position = next_position

            # 화면 업데이트
            if self.visualize:
                if self.view_episode<=current_episode:
                    #reward표시
                    font = pygame.font.SysFont('malgungothic', 30)
                    text = font.render("current_episode"+str(current_episode), True, GREEN)
                    screen.blit(text, (10, 70))
                    font = pygame.font.SysFont('malgungothic', 30)
                    text = font.render("move"+str(self.move), True, GREEN)
                    screen.blit(text, (10, 10))
                    font = pygame.font.SysFont('malgungothic', 30)
                    text = font.render("action"+str(action), True, GREEN)
                    screen.blit(text, (10, 40))
                    text=font.render("Failed:"+str(self.failed),True,WHITE)
                    screen.blit(text,(10,100))
                    pygame.display.flip()
                    clock.tick(10)#

            # 에피소드 종료 체크
            if agent_position == (self.maze_height - 2, self.maze_width - 1):
                print("Episode", current_episode, "completed")
                current_episode += 1
                agent_position = (0, 1)
                self.failed=0
                print(self.move)
                if self.shortest_path+1>=self.move:
                    self.exploration_rate=0
                #     self.visualize=True
                #     self.view_episode=current_episode
                # if self.shortest_path==self.move:
                #     print("최단경로입니다")
                #     return current_episode
                else:
                    self.exploration_rate=self.exploration_rate*0.99
                self.move=0
                print(self.shortest_path)

                prev_move=0
                self.serched=[]


                if self.visualize:
                    if self.view_episode<=current_episode:
                        print(self.exploration_rate)
                        pygame.time.wait(10)

            # 모든 에피소드가 완료되면 종료
            if current_episode > self.ep_num:
                running = False

    # 게임 종료

    pygame.quit()
if __name__ == '__main__':
    paser=argparse.ArgumentParser()
    paser.add_argument('--maze_size',type=int,default=3)
    paser.add_argument('--view_episode',type=int,default=900)
    paser.add_argument('--visualize',type=bool,default=False)
    paser.add_argument('--episode',type=int,default=1000)
    args=paser.parse_args()

    Maze_ai(args.maze_size,args.view_episode,args.visualize,args.episode)

env.py
(미로 생성해주는 모듈)

import random


class Room:
    def __init__(self, x, y):
        self.x = x
        self.y = y
        self.dir = [(x + 1, y), (x - 1, y), (x, y + 1), (x, y - 1)]
        random.shuffle(self.dir)

    def get_cur_pos(self):
        return self.x, self.y

    def get_next_pos(self):
        return self.dir.pop()


def make_maze(size):
    rooms = [[Room(x, y) for x in range(size)] for y in range(size)]
    maze = [[1 for _ in range(size * 2 + 1)] for _ in range(size * 2 + 1)]

    visited = []

    def make(cur_room):
        cx, cy = cur_room.get_cur_pos()
        visited.append((cx, cy))
        maze[cy * 2 + 1][cx * 2 + 1] = 0
        while cur_room.dir:
            nx, ny = cur_room.get_next_pos()
            if 0 <= nx < size and 0 <= ny < size:
                if (nx, ny) not in visited:
                    maze[cy + ny + 1][cx + nx + 1] = 0
                    make(rooms[ny][nx])

    make(rooms[0][0])

    return maze​

calculate.py

(q테이블을 자동으로 평가하기위해 최단거리를 계산하는 모듈입니다)

from collections import deque

class Calculate():
    def __init__(self, maze):
        self.maze = maze
        self.shortest_path = self.calculate_shortest_path()
        print("Shortest Path:", self.shortest_path)

    def return_shortest_path(self):
        return self.shortest_path
    # 최단거리 계산 함수
    def calculate_shortest_path(self):
        maze = self.maze
        start_position = (0, 1)
        end_position = (len(maze) - 2, len(maze[0]) - 2)

        # 방문 여부를 저장하는 배열
        visited = [[False] * len(maze[0]) for _ in range(len(maze))]

        # 이동 방향 (상, 하, 좌, 우)
        directions = [(-1, 0), (1, 0), (0, -1), (0, 1)]

        # 시작 위치를 큐에 추가
        queue = deque([(start_position, 0)])
        visited[start_position[0]][start_position[1]] = True

        while queue:
            position, distance = queue.popleft()

            if position == end_position:
                return distance

            for direction in directions:
                next_position = (position[0] + direction[0], position[1] + direction[1])

                if (
                    0 <= next_position[0] < len(maze)
                    and 0 <= next_position[1] < len(maze[0])
                    and maze[next_position[0]][next_position[1]] == 0
                    and not visited[next_position[0]][next_position[1]]
                ):
                    queue.append((next_position, distance + 1))
                    visited[next_position[0]][next_position[1]] = True

        return -1  # 최단거리가 없을 경우 -1 반환



실행 방법

python maze_ai.py --maze_size 9 --view_episode 900 --visualize true --episode 1000
